Boolean Operations on Surfaces for VTK

Please use this identifier to cite or link to this publication:

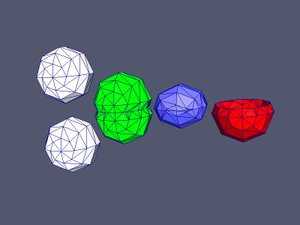

This document describes an implementation of a filter to perform Boolean operations between surfaces. The filter requires the GNU Triangulated Surface Library GTS to perform the operations. This document is accompanied with the source code, and the xml files necessary to create a paraview plugin.
